IPLC M4 Cord

IPLC M210 - Smart Power Cord

Smart Power Cord

Save money and power while reducing CO2 emissions.

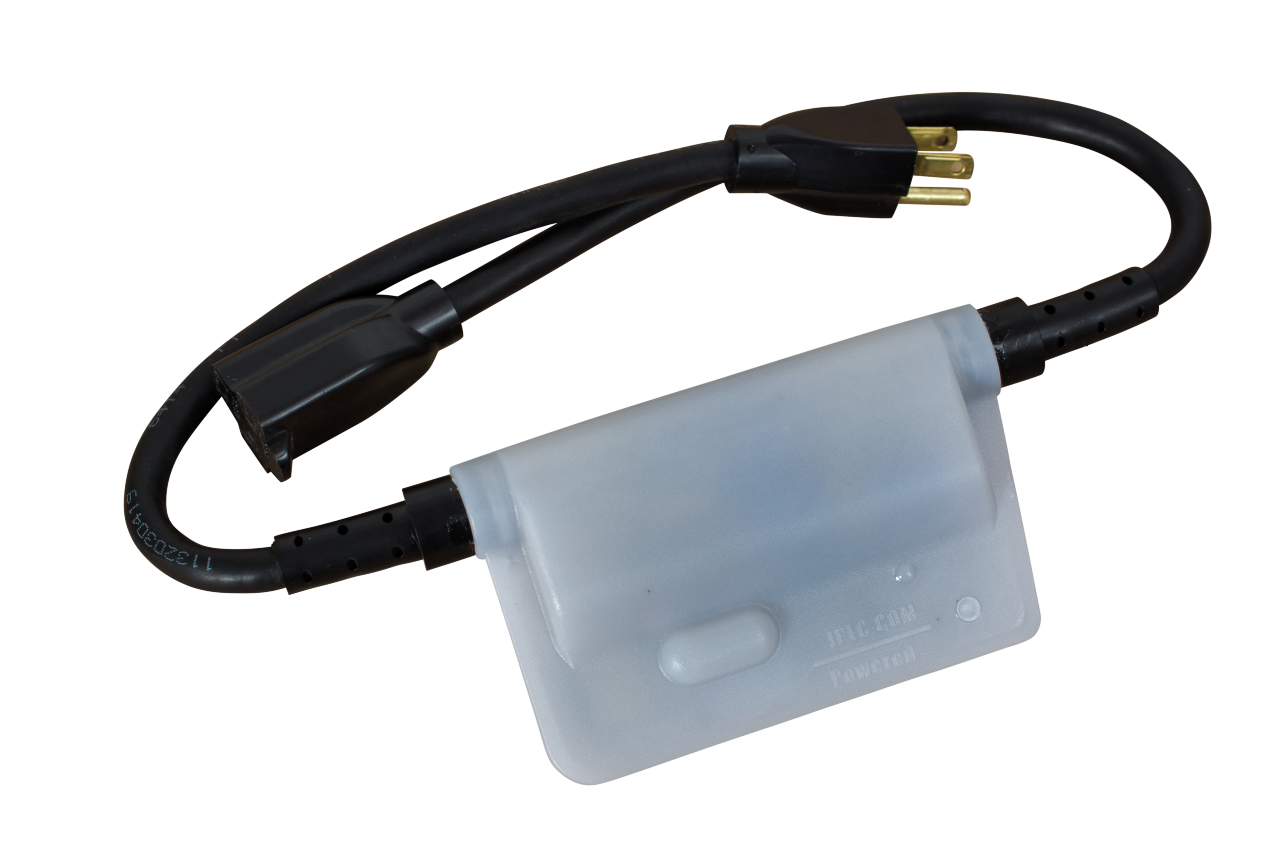

The IPLC M4 Cord is a smart power cord that is plugged in between the existing parking stall power outlet and the load. It measures temperature and wind chill and is factory programmed to automatically regulate the optimum power flow to ensure strong starts at any temperature. The user friendly design indicates if there is power at the plug, and if the block heater has a short or a break in the circuit. Each IPLC M4 handles one circuit and comes with 2 factory program profiles, one for Gas (green) and one for Diesel (yellow) vehicles. The IPLC M4-15-2S is also suitable for GFCI installations when plugged into GFCI receptacles.

Contact Sales 1(866)353-2785

Feedback LED image

Feedback LED

The IPLC M4 Cord has one multiple color LED to provide visual feedback to the user about the status of the unit and indicate the diagnostic status of their plugged in equipment. See operations manual for detailed description of the cord functions.

Intelligent and Durable

Intelligent and Durable

IPLC M4 Cord with a microprocessor and sensors, controls electricity based on a profile schedule, saving energy and providing user friendly operation. The control is embedded in a sealed high strength plastic weatherproof case, providing protection in extreme weather. All without mechanical switches, or settings on the unit, ensuring robust long-lasting durability.

Wi-Fi Capable image

Wi-Fi Capable

IPLC M4 Cord can be connected via Wi-Fi to a user’s smartphone and or personal Wi-Fi hub to access real time data such as load size, energy savings, and status of operation. A boost button is also available to allow you to remotely control the cord to produce 100% power for a one hour period.


How does the IPLC M4 Cord Save?

Initial Power Delay

The IPLC M4 Cord reduces the initial power demand with the use of an initial power delay. This does not typically impact the starting of the vehicle if the engine is warm at the time of being plugged in. There is a six hour power delay for the Gas profile and a three hour delay for the Diesel profile which will guarantee savings regardless of the outside temperature.

Intelligent Weather Monitoring

The IPLC M4 Cord constantly monitors weather conditions such as temperature and wind chill and will only deliver power based on a factory set temperature schedule. This eliminates any excess power usage while ensuring all vehicles start with ease.

Reduced Maintenance

The IPLC M4 Cord stops short circuits from tripping breakers, provides user feedback at the time of use to ensure equipment functionality reducing vehicle service calls to get you going. Additionally a properly functioning block heater and a warm engine reduces wear and CO2 emissions through more efficient engine starts.

Specifications

Pre-Programmed Schedule
Schedule M4-15-2S
Initial Power Delay 6.0 Hours Gas Profile, 3 Hours Diesel Profile
Load Limit Up to 1,800 Watts (15 Amps)
Specifications
Certification CSA CertifiedThe IPLC M4-15-2S an ETL certified product in Canada and the United States of America.
Exterior Material High Strength Polycarbonate
Rust Resistant Yes
Indicator Lights 1 Multicolor LED
CPU Access Port Wi-Fi
1 Circuit 15 amp rated
Circuit Operation 60 Hz
Physical Information
Cord Length 30.0 inches
Case Width 4.8 inches
Case Height 3.0 inches
Case Depth 1 inch
Unit Weight 0.65 lbs
Packaging Details
Box Width 11 inches
Box Height 2.5 inches
Box Depth 7.5 inches
Box Weight 1.0 lb
What's in the Box
Product IPLC M4 Cord (M4-15-2S)
Literature IPLC M4 Cord Installation and User Guide
Wi-Fi IPLC M4 Cord Wi-Fi Getting Started Guide
Warranty
Term 1 Year
Coverage Materials and Workmanship
Software Updates Free, Product Lifetime
Full Details The IPLC M4 Cord has a 1 year warranty on materials and workmanship and is handled directly with the manufacturer. This warranty covers normal use of the product only and does not cover abuse, accidental damage or vandalism. All software updates are free for the life of the product (a Wi-Fi connection to the internet is required).

IPLC M4 Cord Facts

  • The IPLC M4 Cord plugs into a receptacle, NO special wiring.
  • Ideal for any location, works with any power receptacle including GFCI.
  • The IPLC M4 Cord has flexible programming capabilities.
  • The IPLC M4 Cord can reduce energy costs up to 65%.
  • The IPLC M4 Cord has unique diagnostic feedback capabilities.
More Information

Files

M4 Owners Manual

PDF of the M4 Cord, includes details on the proper use of the cord, details on the LED functions and the factory set profiles.
