IP3 Series Pedestal

IPLC IP3 Series Pedestal - Smart Parking Pedestal

Smart Parking Pedestal

Save money and power while reducing CO2 emissions.

The IP3 Series Pedestal is a modular parking pedestal with a rust-free anodized aluminum tower. It is available with or without an IPLC control. Combined with an IPLC Control the IP3 Series Pedestal averages up to 65% in power savings.

The optional IPLC Control is a smart power receptacle which measures temperature and wind chill. It comes factory programmed to automatically regulate the optimum power flow to ensure strong starts at any temperature. Its' user friendly design identifies if there is power at the plug, and if the users block heater is shorted or has a break in the circuit. Each IPLC Control handles two circuits and is provided with factory programming. Each outlet can be individually programmed to suit specific needs.

Contact Sales 1(866)353-2785

Universal Mounting System image

Universal Mount

The IP3 Series Pedestal is anchored with universal mounting rings made to fit standard 6" and 7" grid mounts. The unique mounting system allows for a quick and easy install on a wide range of configurations.

Sliding Enclosure image

Sliding Enclosure

The IP3 Series Pedestal is engineered with a sliding enclosure which provides easy access to all connections. The sliding panel is secured with a lock to prevent any unauthorized access.

Intelligent Receptacle image

Smart Power Receptacle

Combined with an IPLC Control the IP3 Series Pedestal averages up to 65% in power savings, stops tripped breakers and provides diagnostic feedback through LED indicator lights.

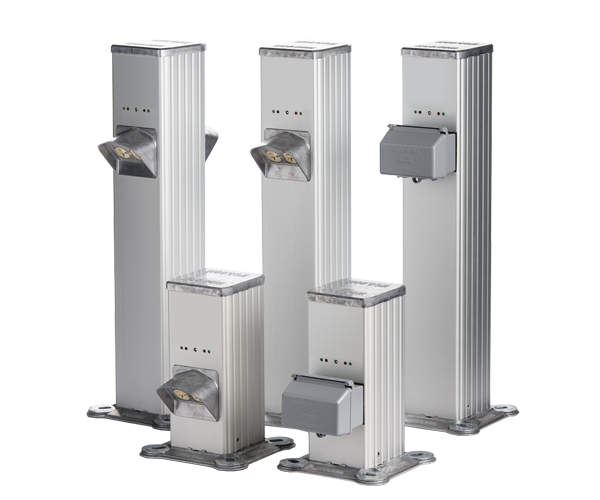

IP3 Series Pedestal family image

IP3 Series Pedestal Family

The IP3 Series Pedestal line includes the option of 15 and 29 inch heights with single control, dual control or no control to meet the needs of any parking lot design.

IP3 Series Pedestals with the IPLC control can reduce your parking lot power consumption by up to 65%. Learn more about the cost savings potential of the IPLC Control by instantly generating your parking lot savings simulation report.

Specifications

Configuration Options
Pedestal Height 15 inches or 29 inches
Number of Receptacles Single or Dual
IPLC Control Control or No Control
Receptacle Mount FS Box mount
Pre-Programmed Schedule (IPLC Control Models Only)
Schedule More Information
Initial Power Delay 2.05 Hours
Load Limit Up to 1,800 Watts (15 Amps)
Specifications
Certification CSA CertifiedThe IP3 Series Pedestal is a CSA certified product in Canada and the United States of America.
Exterior Material Anodized Aluminum
Rust Resistant Yes
Indicator Lights 2x Green LEDs and 2x Red LEDs (IPLC Control Models Only)
CPU Access Port IR (Infrared) (IPLC Control Models Only)
IPLC Control Optional: Available in single or dual controls
GFI Support Not Included
Receptacle Industrial Outlet
Circuit Operation 60 Hz
Physical Information
Base Details View Detailed Drawing
Base Dimensions 9 inches x 9 inches
Bottom Cutout Dimensions 3.4 inches x 3.4 inches
Tower Width 5.5 inches
Tower Height Available in 15 inches and 29 inches
Tower Depth 5.87 inches
Packaging Details
Box Width 13 inches
Box Height 15.5 inches (15 inch pedestals) or 29 inches (29 inch pedestals)
Box Depth 9.5 inches
Box Weight 9 lbs (15 inch pedestals) or 15 lbs (29 inch pedestals)
What's in the Box
Product IP3 Series Pedestal
Mounting Rings 4x Mounting Rings
Literature IP3 Series Pedestal Commissioning Statement / Installation Guide
Warranty
Term 3 Years
Coverage Materials and Workmanship
Software Updates Free Product Lifetime

IP3 Series Pedestal Facts

  • Rust-free anodized aluminum tower construction.
  • Available in 15'' or 29'' pedestal heights.
  • Pedestals anchored with universal mounting rings designed to fit 6'' or 7'' grid mounts.
  • Available with or without the IPLC control and in single or dual control models.
  • FS mount with in-use cover.
More Information

Files

IP3 Series Installation Guide

PDF of the IP3 Series Pedestal installation and commissioning document, includes installation instructions and factory default program parameters.

IP3 Basic Installation Guide

PDF of the IP3 Series Pedestal installation and commissioning document, includes installation instructions and factory default program parameters.

IP3 Series Installation Guide French

PDF of the IP3 Series Pedestal installation and commissioning document (FRENCH), includes installation instructions and factory default program parameters.

IP3 Basic Installation Guide French

PDF of the IP3 Series Pedestal installation and commissioning document (FRENCH), includes installation instructions and factory default program parameters.
